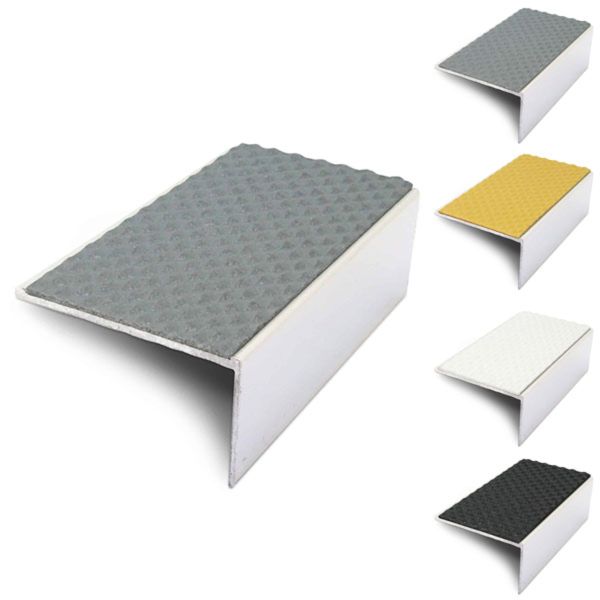

56mm x 32mm External Stair Nosing Edge Trim With Tredsafe PVC Insert

56mm x 32mm External Stair Nosing Edge Trim With Tredsafe PVC Insert

The NSL Profile comprises an aluminium channel with a choice of insert finishes designed to meet the guidance in Approved Document M and BS8300:2009+A1:2010. It is a straight edge, single-channel profile, and is ideal for use with resilient flooring. The profile is supplied with a mill finish as standard; other anodised and powder-coated options can be made available.

Designed to meet the guidelines in BS8300:2009+A1:2010.External grade Tredsafe® Insert. Tredsafe insert is manufactured from a special blend of P.V.C., silica quartz, and polymeric plasticiser, giving a homogeneous hard wearing anti-slip flooring for wet and dry conditions. The three-dimensional pyramid pattern which provides excellent slip resistance in both wet and dry conditions.

Installation

1. Ensure the steps are dry, clean, free of debris, level, and even.
2. If pre-drilled, use the drill holes to mark steps for drilling location.
3. Drill and plug the steps.
4. Apply a suitable adhesive to the underside of the nosing and apply the nosing to the step.
5. Screw down the step with the appropriate size screws.
6. Apply insert (if separate) or insert pip to cover the screw head.

Note: This profile comes pre-drilled and includes small pips to cover the holes.
